CNC Router DSP Controller Systems Weihong NK105G2

CNC Router DSP Controller Systems Weihong NK105G2 for Sale

From www.eaglecnctec.com
Jinan EagleTec CNC Machinery Co.,Ltd.

Weihong NK105 is 3-axis CNC controller systems and it is one of the most popular CNC systems for CNC Routing machine. Another similar controller like NK105 is Richauto DSP CNC systems.

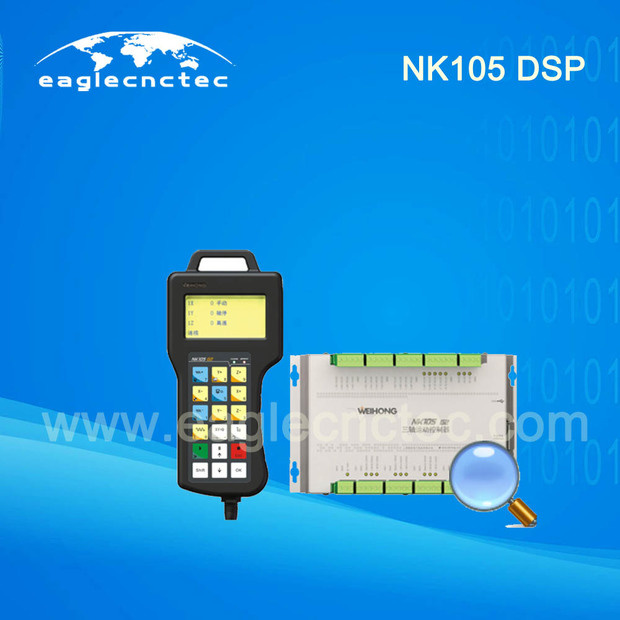

Full set NK105 controller contains 3 parts:
1) Handle / hand-held motion controller
2) Mother card / control card
3) USB communication cable 0.8m


Features of CNC Router DSP NK105G2
1) It is a 3-axis motion controller for cnc router.
2) Separated Design Protect control parsing module to the largest extent.
3) Internal speed parameters are optimized, and problems like rag and chatter mark during machining are solved. Setting of short line speed-limit parameter effectively increases machining speed and precision.
4) Support English and Chinese language.
5) Break point resume.
6) 128M RAM, 256M Flash memory.
7) Support 8 gears of spindle speed.
8) Format of toolpath program supported: *.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt
