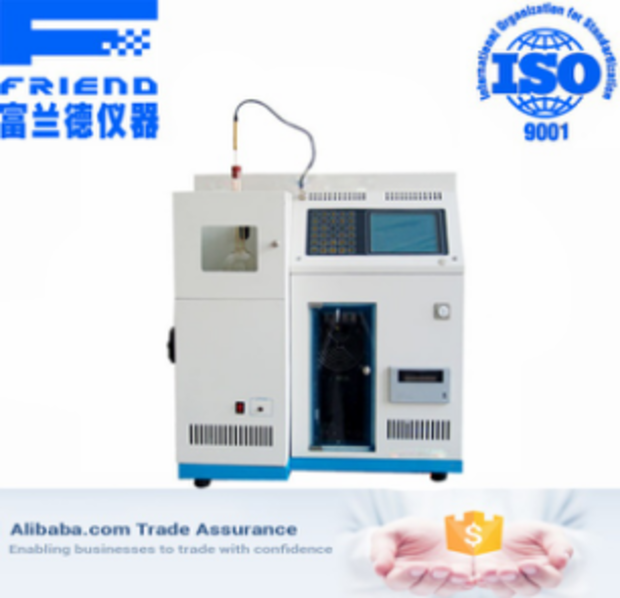

FDR-0871 Automatic distillation analyzer

Scope
 Automatic distillation analyzer of petroleum products in line with GB / T6536 «Petroleum products - Determination of distillation» and ISO3405-75 (international standard), ASTMD86 / 72 (American Society for Testing and Materials standard), IP123 / 78 (British Petroleum Institute standards) provisions Test methods; for natural gasoline (stable light hydrocarbon), motor gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha, petroleum solvent oil, kerosene, diesel fuel, gas oil, distillate fuels and similar petroleum products Determination of distillation.

Features
1, large-screen LCD, the software prompts
2, the entire English operating system platform, multiple operating modes available for customers to use programming
3, using imported American XEC infrared cylinder reading system, high resolution, high literacy scale accuracy, good stability
4, using a key to set the calibration system, user-friendly design, completely solve the traditional equipment tracking calibration process complex operations
5, using the US HP Precision tracking systems, rail wear, transmission of the fine, tracking amplitude can be controlled 0.1ml
4, the instrument can be upgraded to a computer controlled by computer (typically LCD screen, you can’t upgrade the computer), the distillation process parameters dynamic display, automatic optimization of the heating power
Condition 5 provides a new method of document and calling Features, enough storage space to hold the trial record 6, cold baths and bath cylinder temperature using intelligent control system to provide the required test groups of 7 each, and automatically determine the termination condition issued by the test results, printable reports
8, the software provided with the anti-overshoot system, which can effectively prevent bumping situation gases
9, based on customer demand, upgrade computer wired control or wireless control (non-standard, you need to customize)
Technical Parameters
1, Power: AC220V ± 10% 50Hz
2 heating power: 2KW
3, the cooling power: 1KW
4, steam temperature range: 0 ~ 400 ℃
5, the furnace temperature range: 0 ~ 500 ℃
6, cooling temperature range: 0 ~ 100 ℃
7, refrigeration control precision: ± 1 ℃
8, temperature measurement accuracy: ± 0.1 ℃
9, Volume accuracy: ± 0.1ml
