Jinan EagleTec CNC Machinery Co.,Ltd.

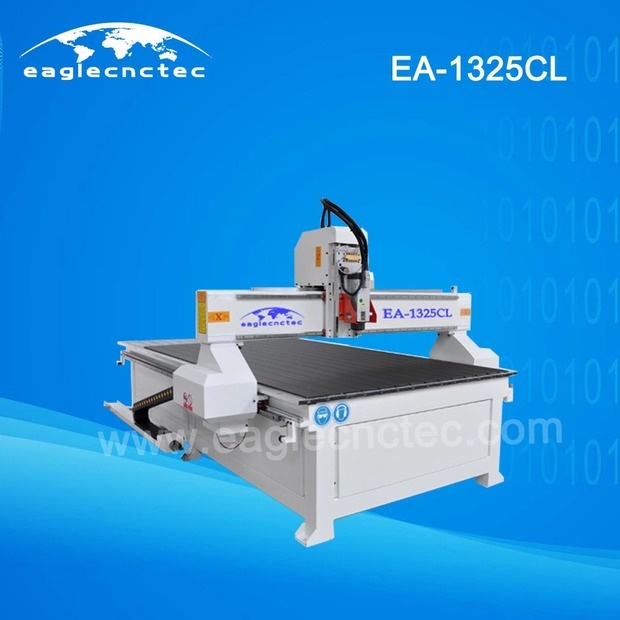

EA-1325CL is a basic model of cnc router, working size 1300x2500mm, clamp table. As a basic model, it can be used in any fields. This model equipped with origin Italy HSD6.0kw spindle, especially suitable for cutting jobs.

Application
Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.
Features

1) Frame is welded with seamless steel structure; processed by high temperature tempering
treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6
legs with adjustable leveling feet
2) Beam is made of steel. A steel beam is superior to a aluminum in its ability to suppress
and absorb the forces created during cutting. It is internally ribbed in order to stiffen the
assembly; this design is minimizing the vibration while increasing accuracy and repeatability
3) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly
long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany
rolling antibacklash ball screw
4) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides
allow for higher feed speeds and a better quality of cut.
