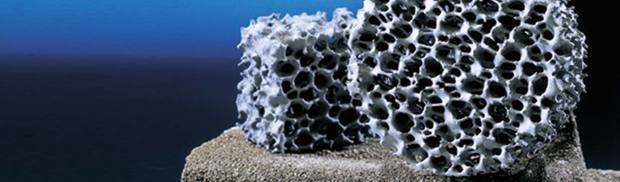

Ceramic Foam Filter CFF-S for Iron Casting

CFF-S filters are intended for filtering grey, ductile iron and nonferrous metals at the temperatures up to 1480 °C. The filters can be placed in the

CFF-S is a range of new generation silicon carbide based ceramic foam filters with a consistent, high level performance in terms of metal flow rate and filtration efficiency. CFF-S filters are intended for filtering grey, ductile iron and nonferrous metals at the temperatures up to 1450 °C. The filters can be placed in the gating system of the mould as well as in combination with exothermic extensions for direct casting/pouring on the filter. They can also be used for continuous non ferrous metal filtering, e.g. production of copper wires, roads.
Features:
1. High strength
2. Excellent corrosion resistance
3. Outstanding thermal shock resistance
4. Available in kinds of shapes, in a variety of pore sizes, e.g.10ppi, 20ppi, etc.
Functions:
1. Clean iron castings
2. Fewer inclusions
3. Increased casting yield
4. Cost-savings from reduction in scrap
5. Lower costs for machining of the castings
Standard Dimensions and Technical Parameters
Dimensions (mm)PouringRate(Kg/s)Filtration Capacity(Kg)
GreyIron DuctileIron GreyIron DuctileIron
40x40x22 4 3 65 32
50x50x22 6 4 100 52
75x50x22 9 6 150 75
75x75x22 14 9 220 100
100x50x22 12 8 200 100
100x75x22 18 12 300 150
100x100x22 24 16 400 200
150x100x22 36 24 600 300
150x150x22 50 36 900 450
170x150x32 62 42 1020 510
200x170x32 84 56 1400 700
D50x22 5 4 80 40
D60X22 6 5 110 55
D80X22 12 8 200 100
D90X22 16 10 240 120
D125X25 28 18 440 220
Above figures are only for reference .Other special specification could be customized.

Img of Qingdao Boffin-Toda Advanced Ceramics Co., Ltd.
About the tenderer: Qingdao Boffin-Toda Advanced Ceramics Co., Ltd.

We’re the manufacturer of high quality CERAMIC FOAM FILTER for foundry molten metal filtration. We specialize in this field for more than a decade.
